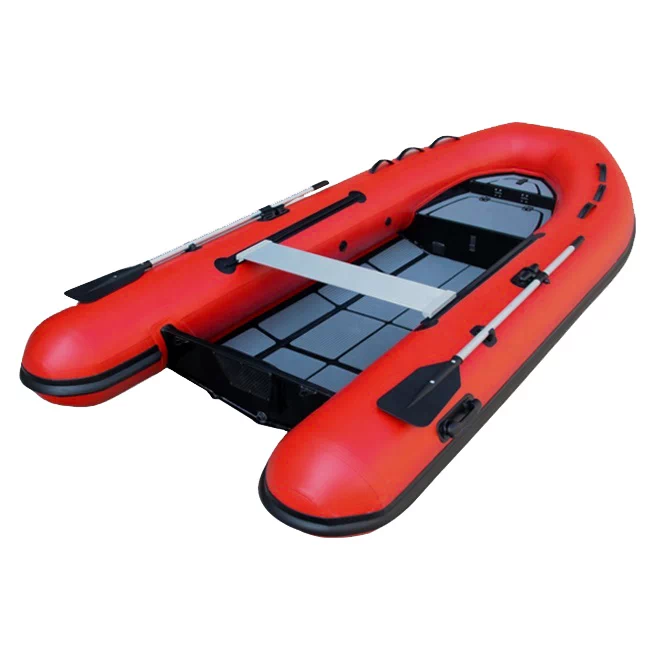

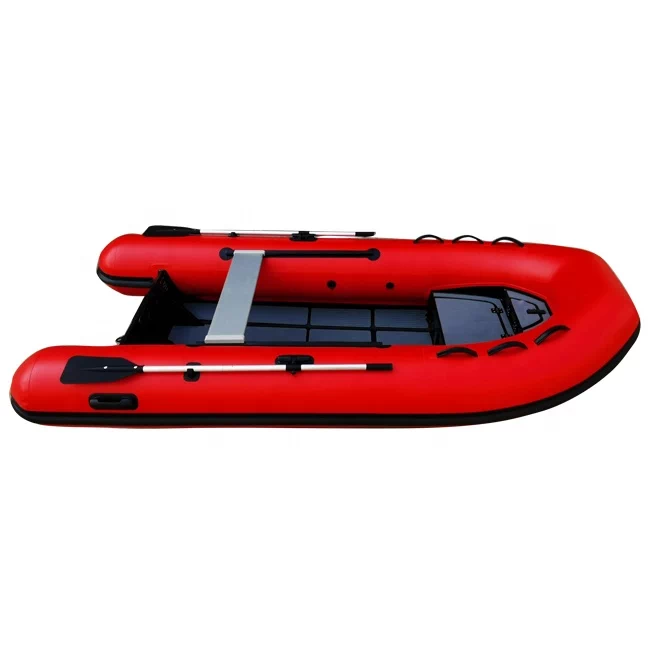

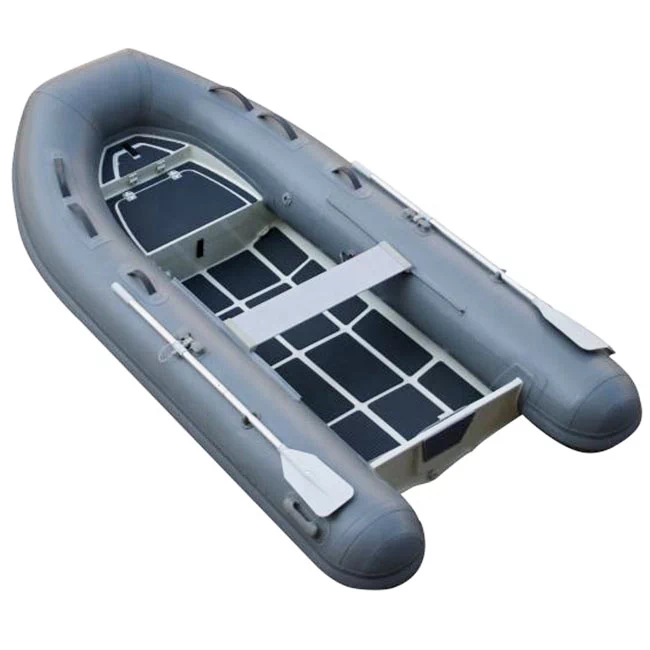

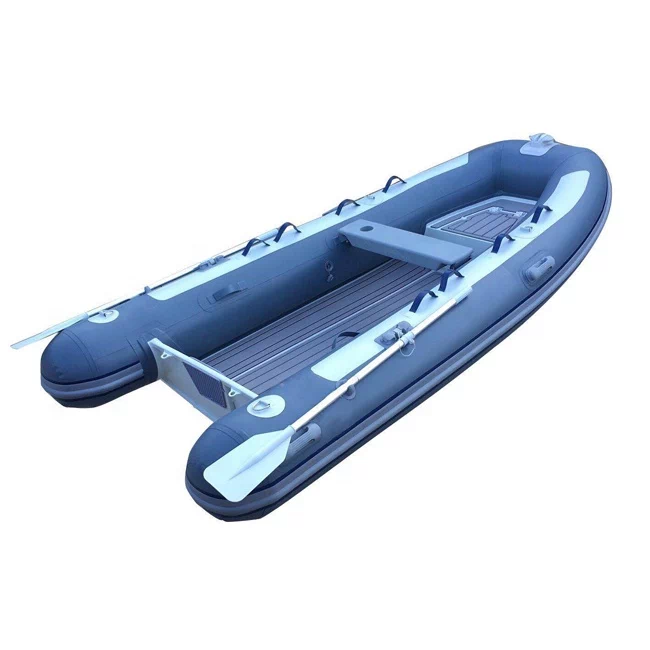

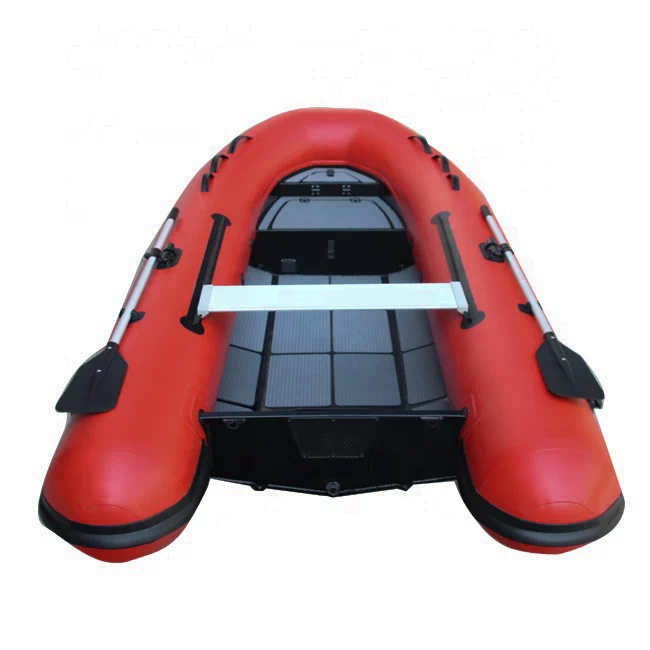

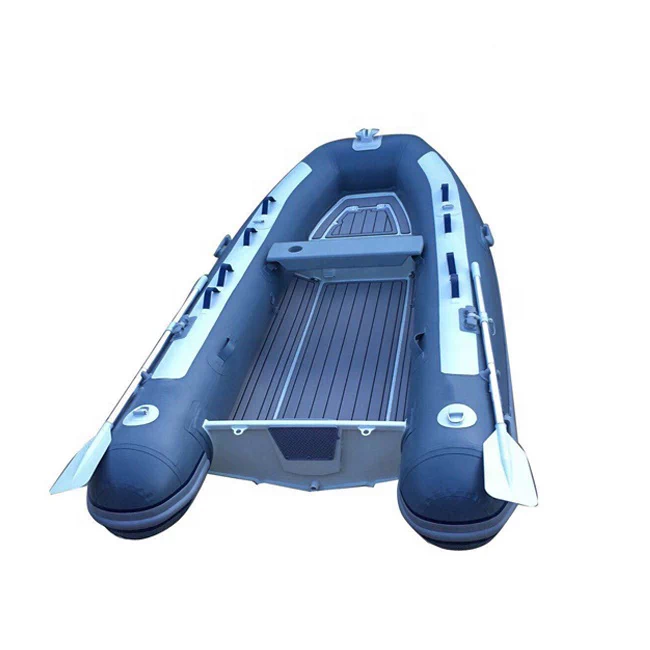

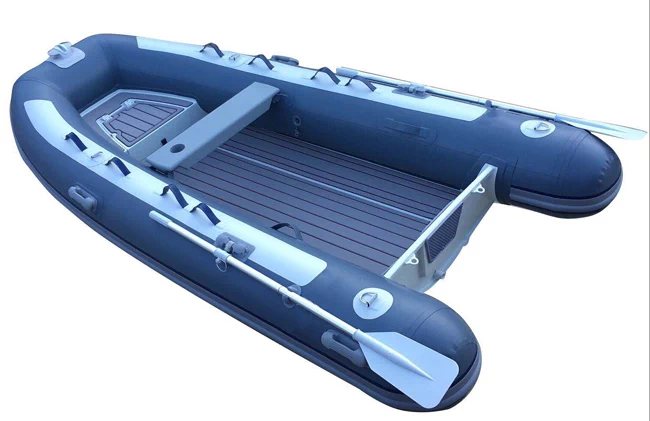

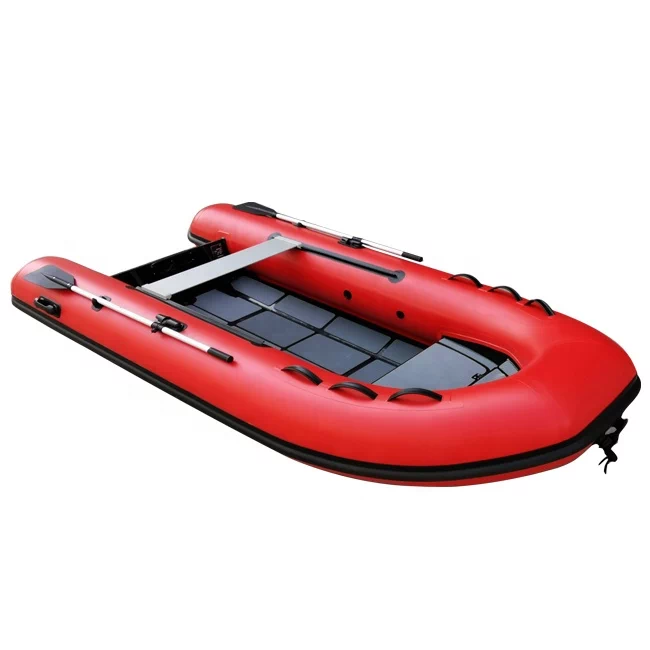

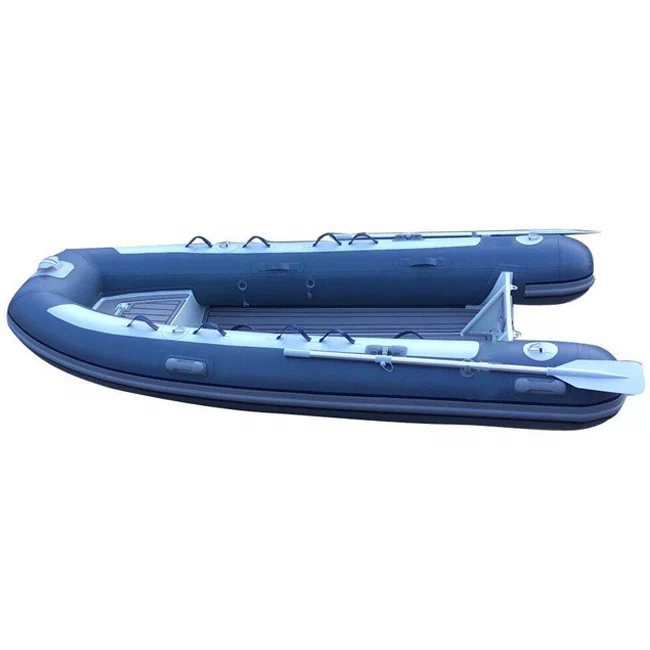

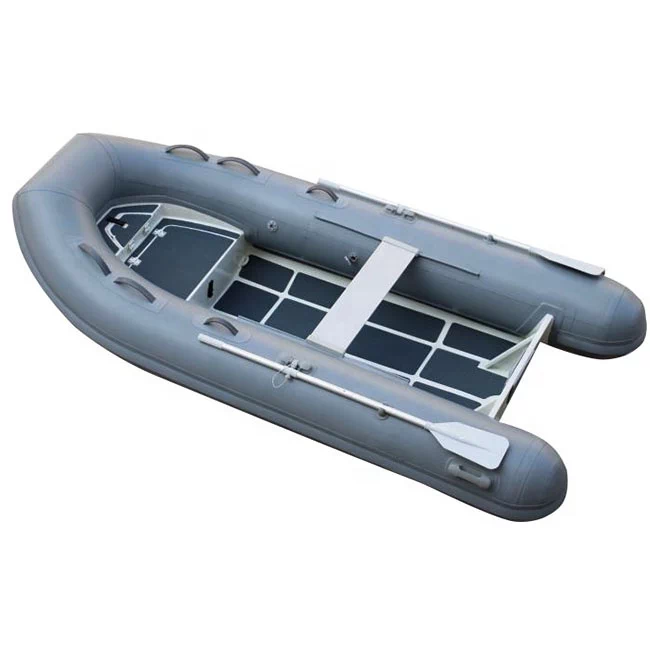

CC340

PROFESSIONAL OUTDOOR
EQUIPMENT MANUFACTURER

We always devote to protect blue planet


Product Description

   Category:        Aluminium Hull

   Tube material:  PVC from Mehler, Hypalon from Orca

   Model Range:   CC300/ CC320/ CC340/ CC360/ CC380


   Standard Equipments:

   * Bow locker

   * Tank strap kit

   * Tow bridle points

   * Lifting points and towing eyes

   * Brushed foam teak finish deck

   * Heavy duty rubbing strake

   * Full length keel guard

   * Marine grade plywood seat

   * Foot pump, oars, repair kit


   Optional Equipments:

   * Extra Aluminum seat(some model)

   * Transom storage box

   * Under seat bag

   * Boat canopy/Bimini Top

   * Boat cover



   Specification of CLASSIC Series:

Model CC300 CC320 CC340 CC360 CC380

Overall Length(cm)

300 320 340 360 380

Overall Width(cm)

166 166 166 166 166

Inside Length(cm)

216 236 256 276 296

Inside Width(cm)

80 80 80 80 80

Tube Diameter(cm)

43 43 43 43 43

Max. Load(kg)

550 580 610 640 670

Max. Person

5 5 6 7 7

Max. Power(hp)

15 20 20 25 30

Net Weight(kg)

58 65 70 74 82

No. of Chamber

3 3 3 3 3
Fuel Tank Volume(L) / / / / /
Thickness(mm) 2.5 2.5 2.5 2.5 2.5
Dead Rise 14° 14° 14° 14° 14°
Transom Height(cm) 40 40 40 40 40
Shaft S S S S S
