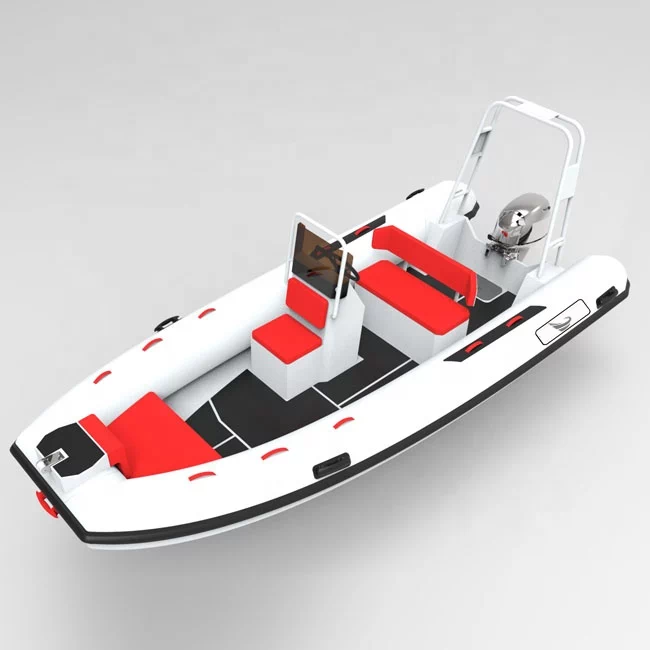

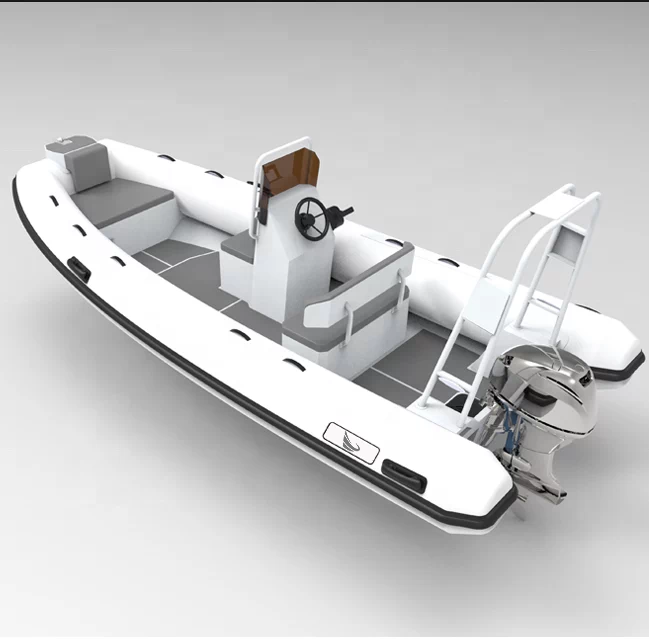

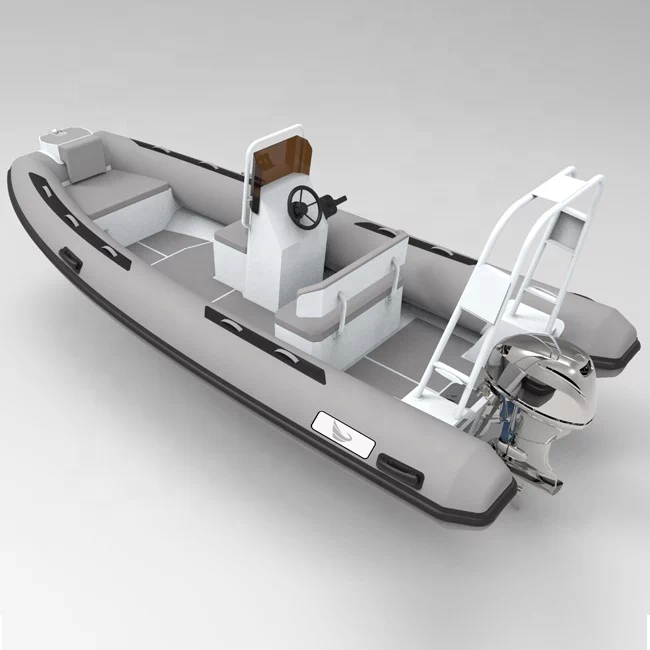

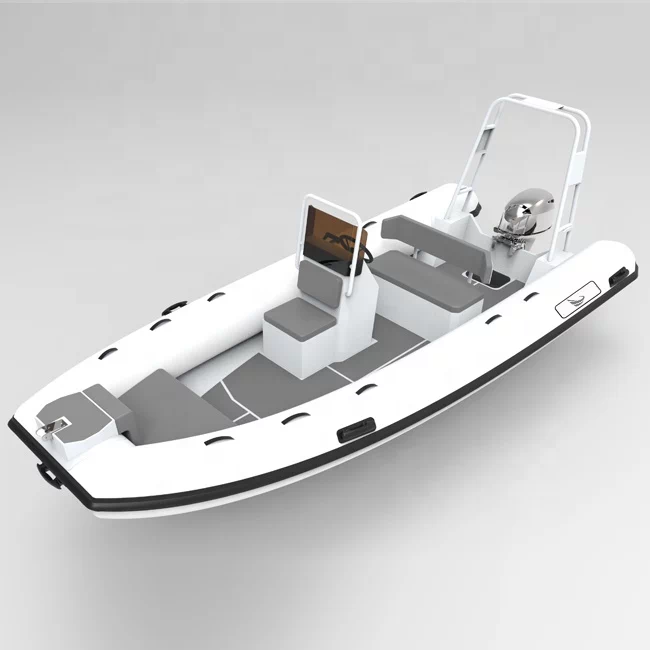

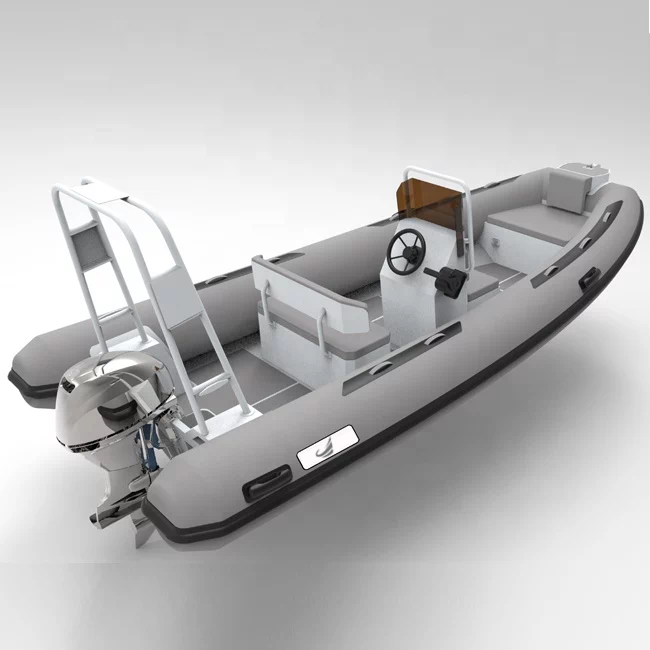

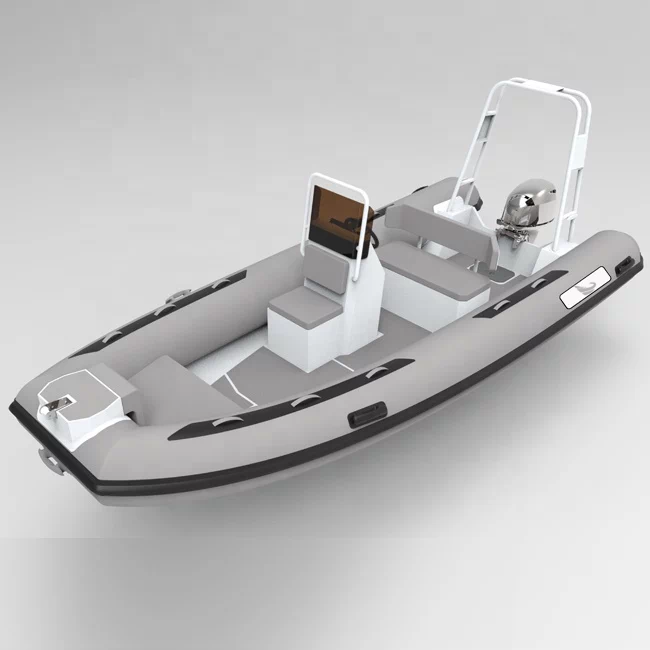

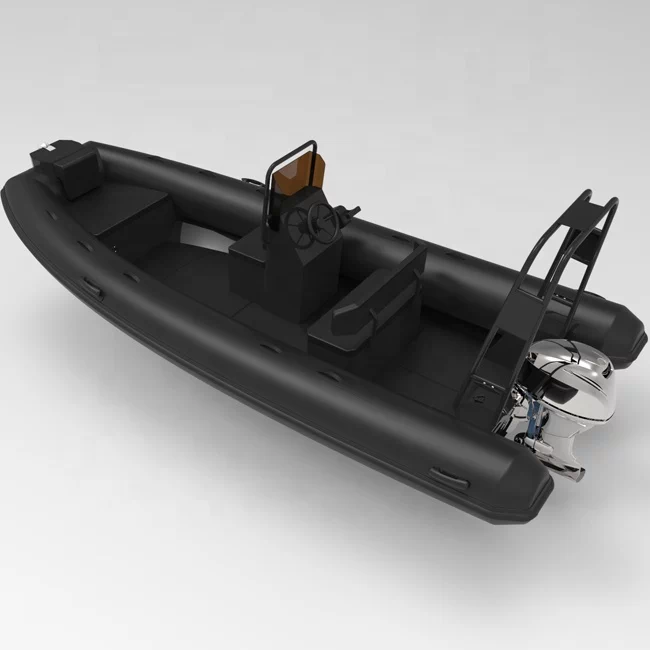

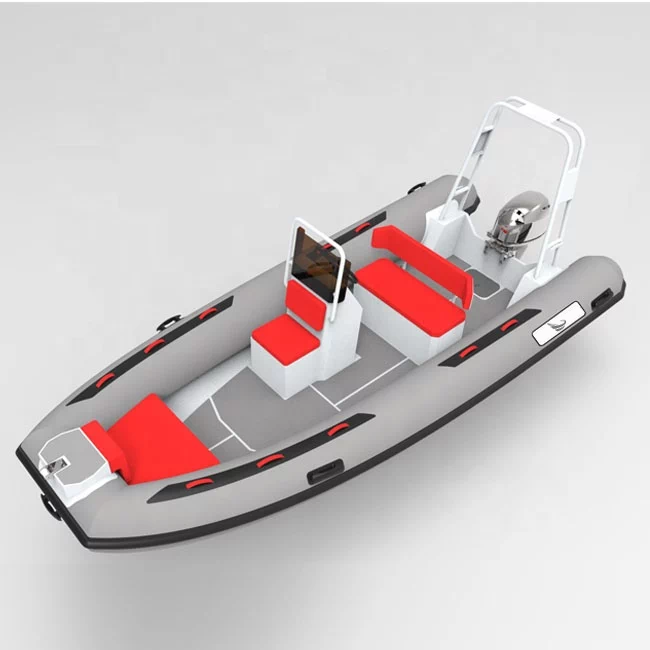

CT500

PROFESSIONAL OUTDOOR
EQUIPMENT MANUFACTURER

We always devote to protect blue planet

Product Description

   Category:        Aluminium Hull

   Tube material:  PVC from Mehler, Hypalon from Orca

   Model Range:   CT340/ CT360/ CT400/ CT420/ CT460/ CT500 / CT520/ CT560/ CT620/ CT660/ CT680


   Standard Equipments:

   * BowStep/Cleat

   * Bow locker

   * Bow cushion

   * Integrated Fuel Tank

   * Tow bridle points

    * Seat&Cushion

    * Steering console with wind shield

   * Lifting points and towing eyes

   * Brushed foam teak finish deck

   * Heavy duty rubbing strake

   * Full length keel guard

   * Foot pump, oars, repair kit


   Optional Equipments:

   * Boat canopy/Bimini Top

   * Roll bar

   * Boat cover



   Specification of CAPTAIN Series:

Model CT500 CT520 CT560 CT620 CT660 CT680

Overall Length(cm)

500 520 560 620 660 680

Overall Width(cm)

228 226 234 248 248 248

Inside Length(cm)

416 420 450 530 560 590

Inside Width(cm)

120 125 130 140 140 140

Tube Diameter(cm)

52 52 52 54 54 54

Max. Load(kg)

1200 1250 1300 1400 1480 1550

Max. Person

10 10 12 14 15 16

Max. Power(hp)

100 100 115 130 150 150

Net Weight(kg)

441 458 494 520 660 600

No. of Chamber

6 6 6 6 6 6
Fuel Tank Volume（L） 80 90 100 130 140 140
Thickness(mm) 4 4 4 4 4 4
Dead Rise 24° 24° 24° 24° 24° 24°
Transom Height(cm) 53 53 64 64 64 64
Shaft L L XL XL XL XL
