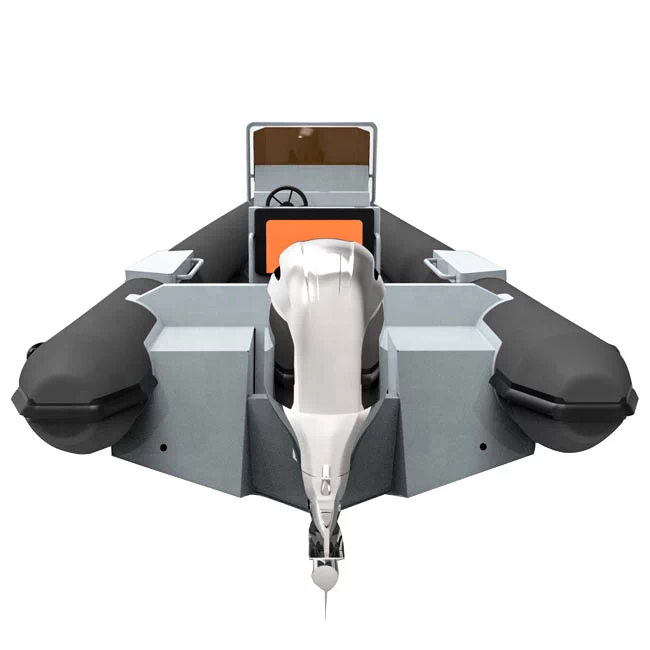

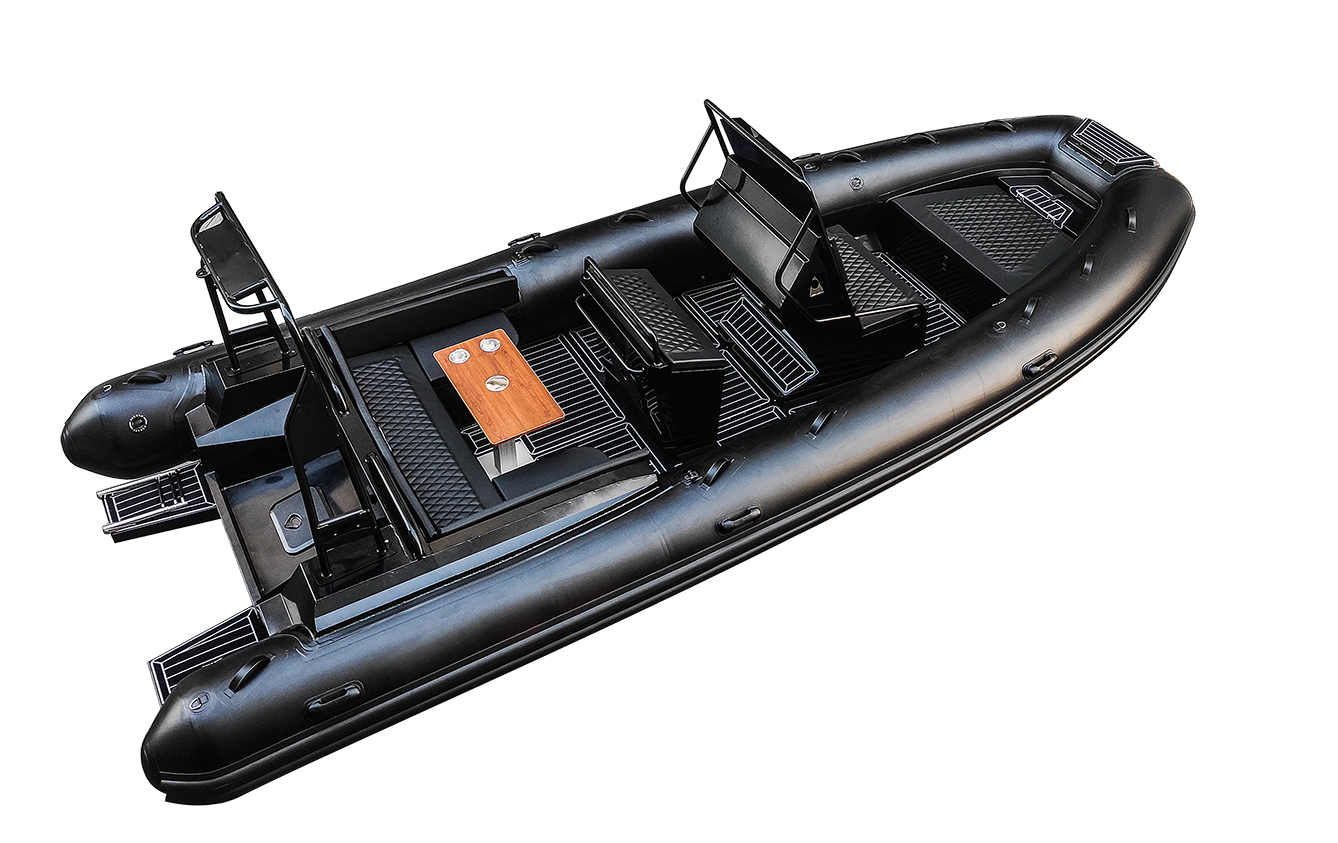

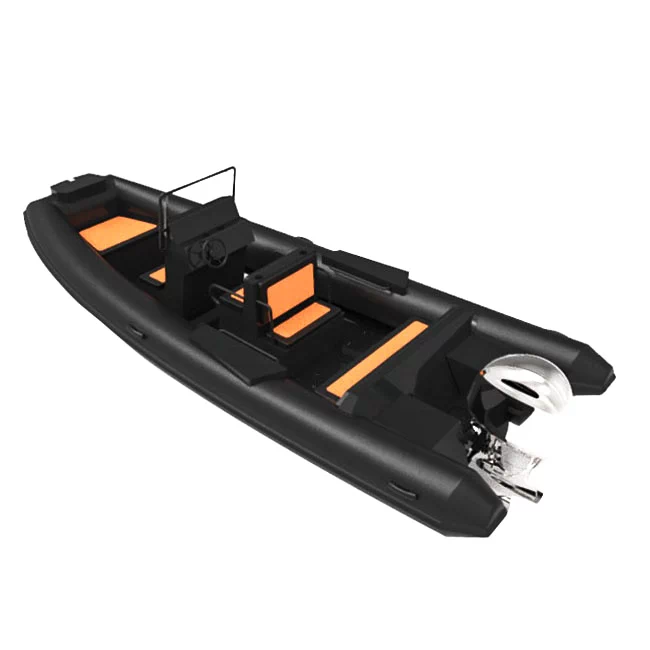

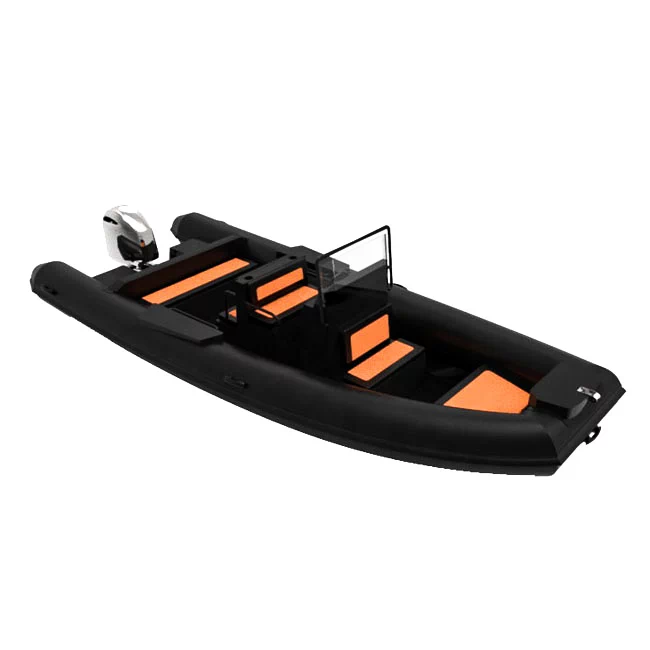

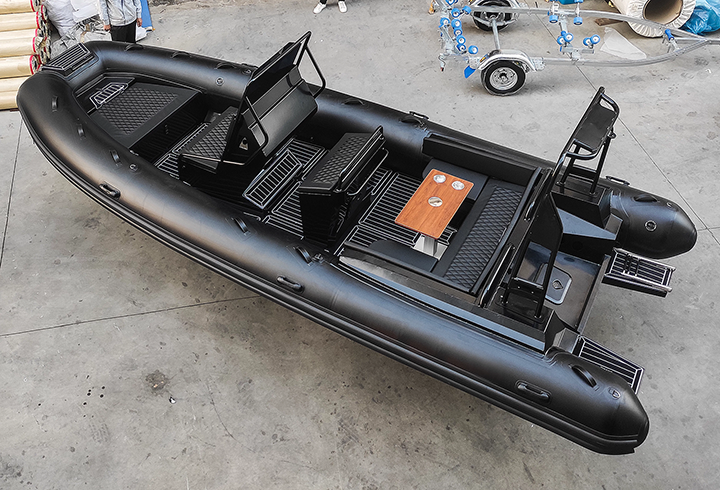

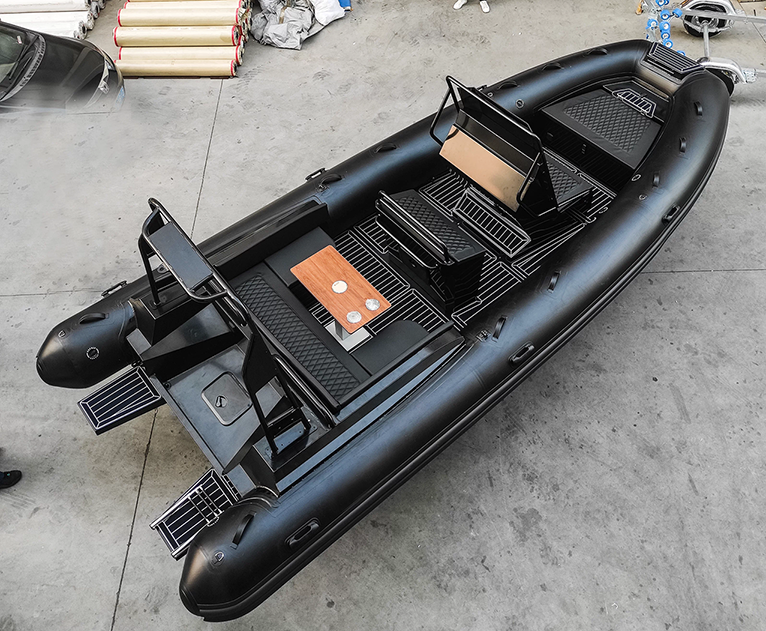

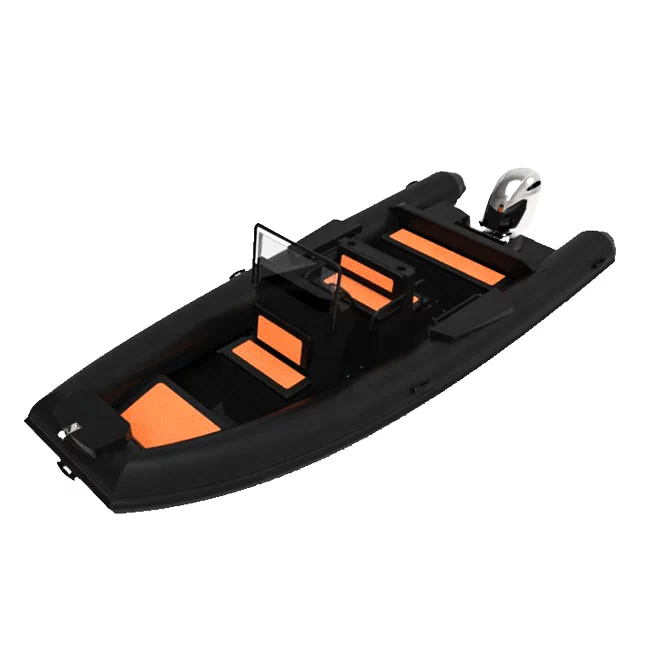

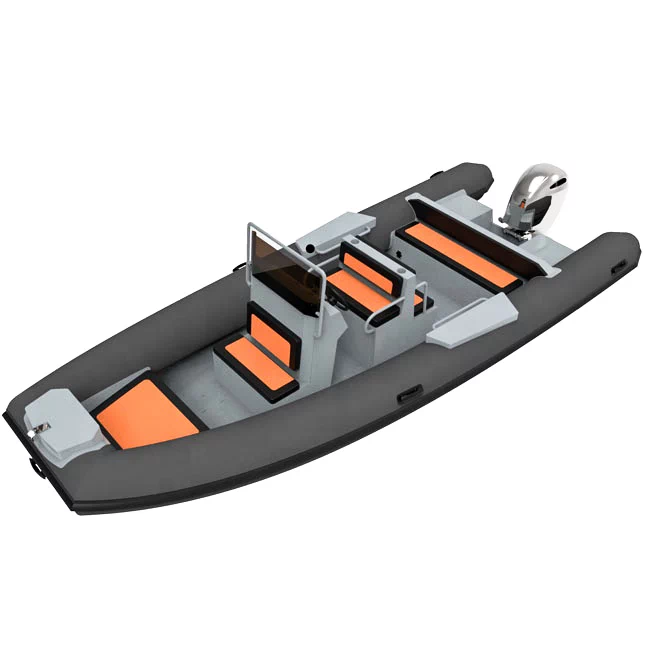

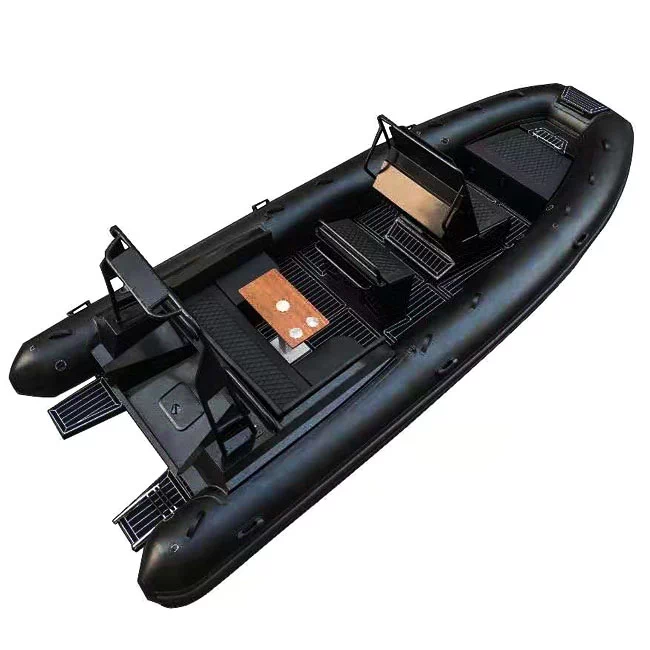

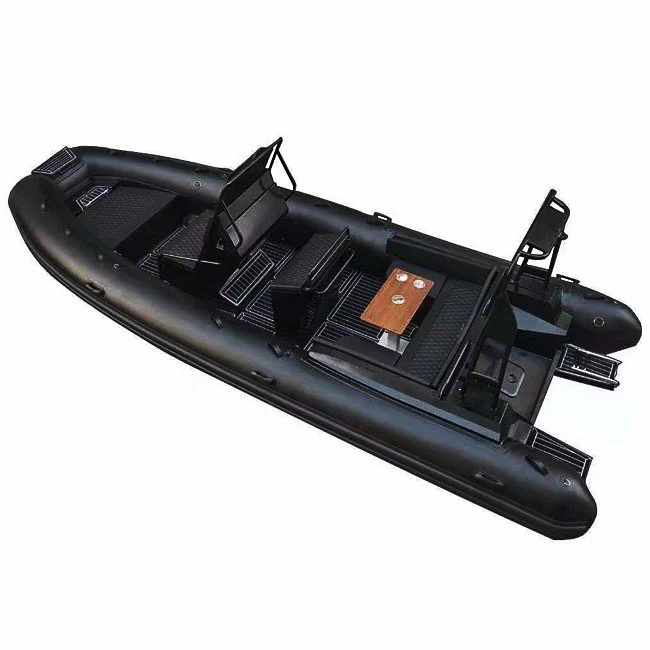

ON640

PROFESSIONAL OUTDOOR
EQUIPMENT MANUFACTURER

We always devote to protect blue planet


Product Description

   Category:        Aluminium Hull

   Tube material:  PVC from Mehler, Hypalon from Orca

   Model Range:   ON360/ ON390/ ON460/ ON500/ ON520/ ON560/ ON580/ ON600/ ON640 / ON680


   Standard Equipments:

   * BowStep/Cleat

   * Bow locker

   * Bow cushion

   * Tow bridle points

   * Seat&Cushion

   * Steering console

   * Integrated rear seat with cushion

   * Lifting points and towing eyes

   * Brushed foam teak finish deck

   * Heavy duty rubbing strake

   * Full length keel guard

   * Foot pump, oars, repair kit


   Optional Equipments:

   * Boat canopy/Bimini Top

   * Roll bar

   * Table

   * Platform with ladder



   Specification of OCEAN Series:

Model ON560 ON580 ON600 ON640 ON680

Overall Length(cm)

560 580 600 640 680

Overall Width(cm)

234 240 248 258 248

Inside Length(cm)

384 390 420 475 500

Inside Width(cm)

130 135 140 150 140

Tube Diameter(cm)

52 52 54 54 54

Max. Load(kg)

1020 1080 1170 1420 1470

Max. Person

10 11 12 15 15

Max. Power(hp)

115 120 130 150 175

Net Weight(kg)

520 540 570 720 680

No. of Chamber

5 5 6 6 6
Fuel Tank Volume(L) 100 110 120 160 140
Thickness(mm) 4 4 4 4 4
Dead Rise 24° 24° 24° 24° 24°
Transom Height(cm) 64 64 64 64 64
Shaft XL XL XL XL XL
